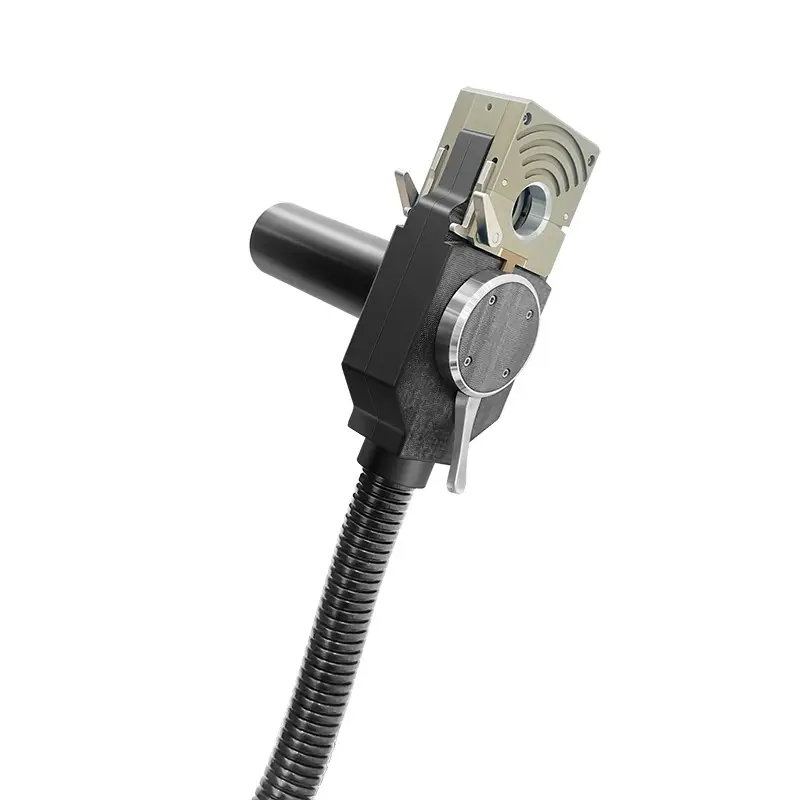

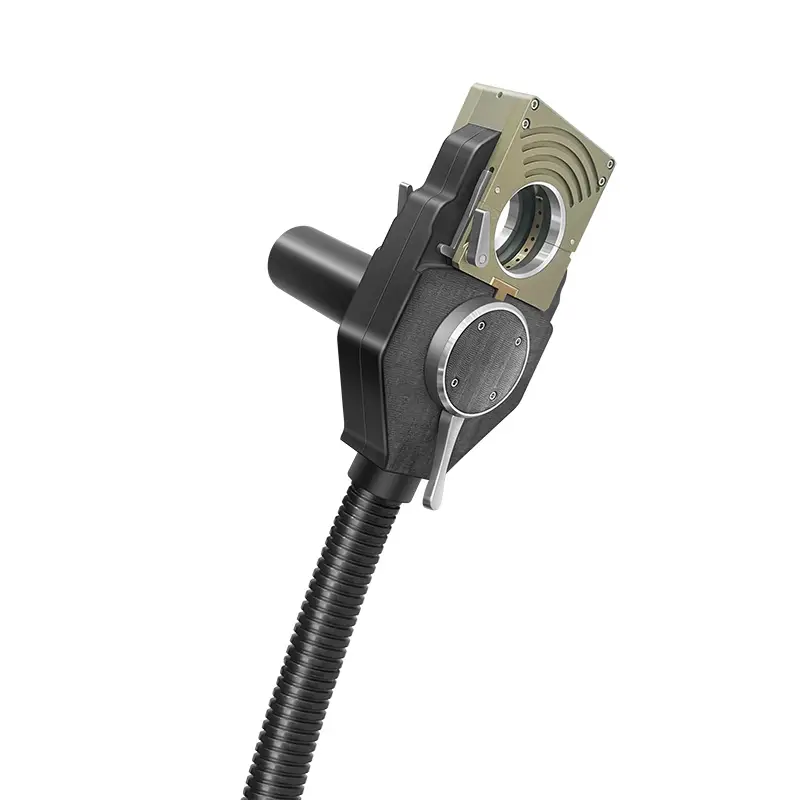

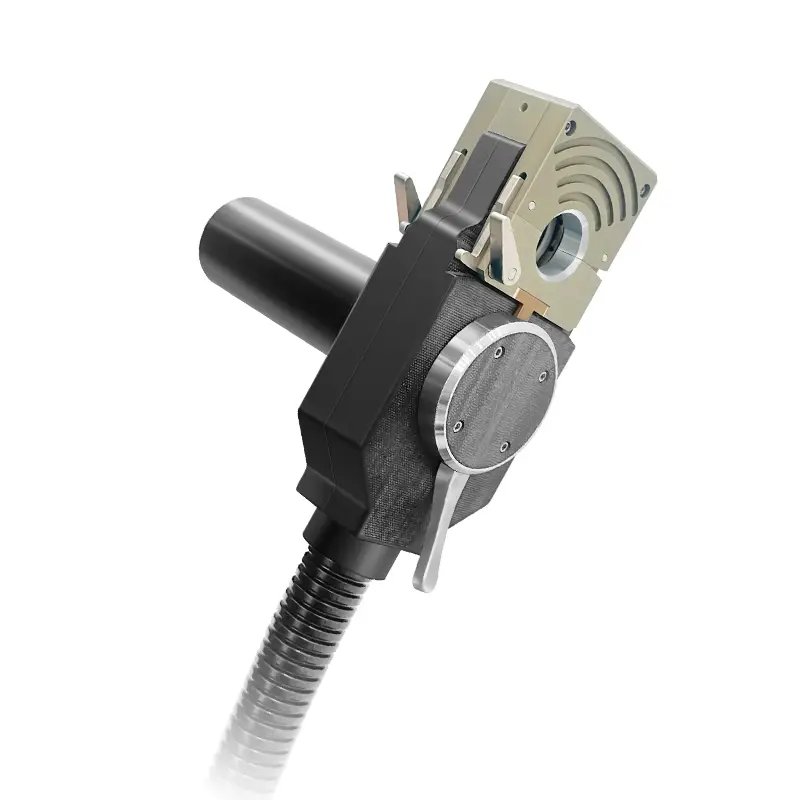

Split-type Weld Head

Split type orbital welding guns is suitable for semiconductor industry, clean energy industy, water treatment industry, life science industry, food and beverage industry, it use of split type design, according to the thickness of the welding pipe and different site conditions, there are two different design schemes for you to choose, the delivery time is 10 days after you provide the pipe diameter size.

Welding pipe diameter: 3.175mm~25.4mm

Welding form: butt joint

Welding wall thickness: 0.5mm~1.5mm

8H micro welding gun is designed for narrow space welding

5H eccentric welding is designed for T-shaped pipes

Delivery time: 10 days

Weld heads have optical speed control wihthout the need for a tachometer or calibration

Reater flexibility to perform welds farther away from the power supply is provided using available welding heads extension cables

Get a Quote

Essential Details

分体管管

Model	XD-5H	XD-10H	XD-8H	Eccentric welding
Power supply	XD-20W /XD-20Pro all-position programmed power supply
Welding material	Carbon steel / stainless steel /titanium alloy, etc
pipe diameter(mm)	3.175-15.88	6.35-25.4	6-12.7	3.175-15.88
Maximum wall thickness(mm)	0.5-1.5	0.5-1.5	0.5-1.5	0.5-1.5
Torch rotation speed(rpm)	0.6-9.0	0.6-9.0	0.6-9.0	0.6-9.0
Weld head cooling	Water cooling
Welding shielding gas	Argon
Weight(kg)	1.3	1.8	4	6
Size(mm)	1557050	1557050	2556629	16974167
Straight line distance	≥19	≥19	≥6	Thick 6/Thin≥19

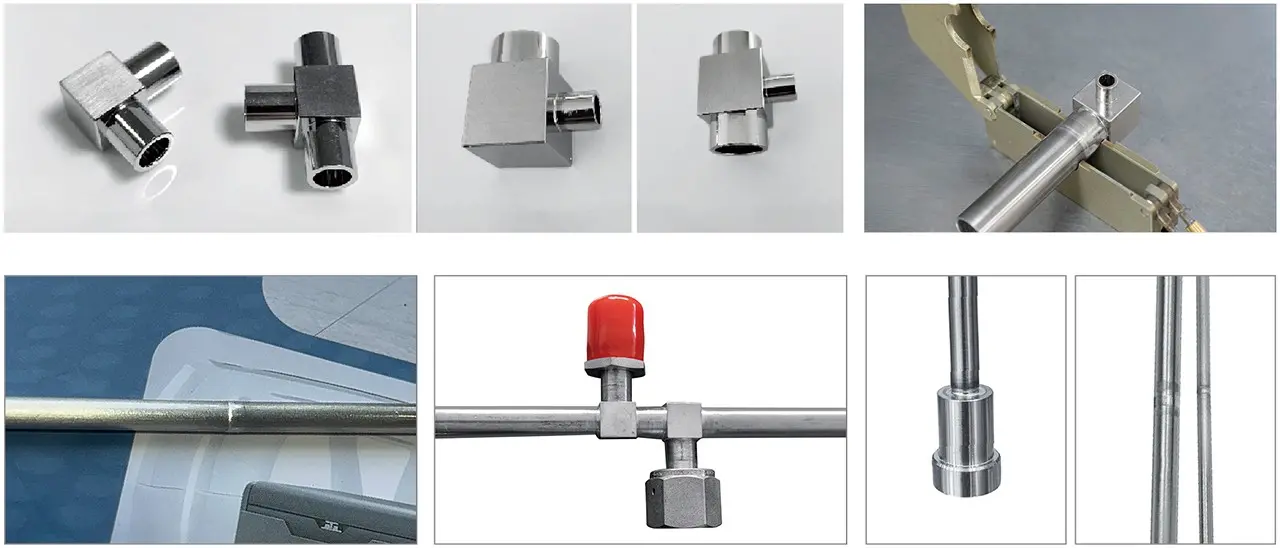

Product Display

1730366354400456

1730366356536757
