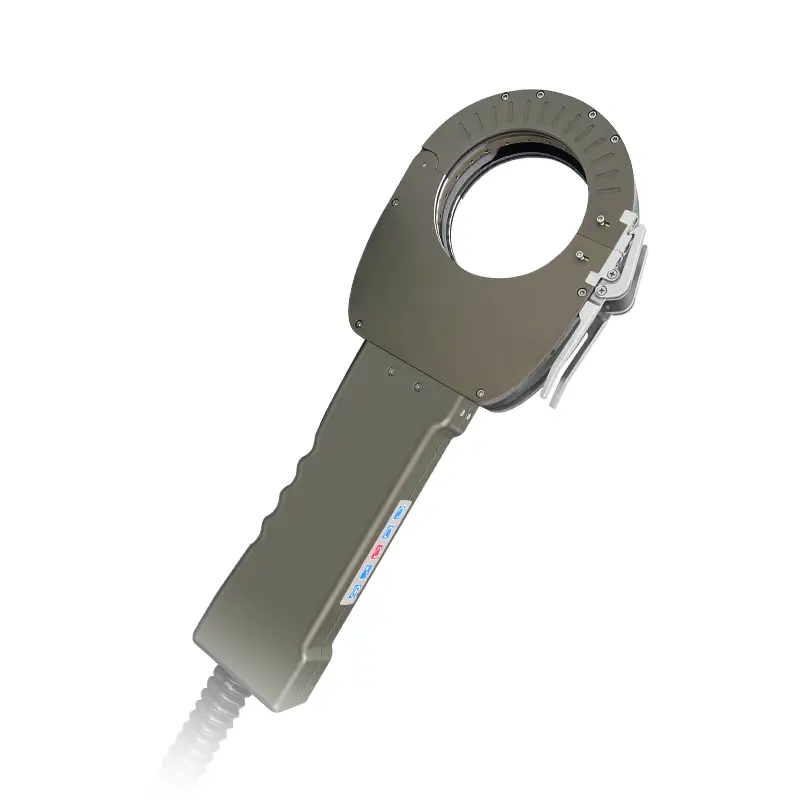

Closed Weld Head

Weld head systemic circulation circulating water cooling, high duty cycle Wear-resistant and high-temperature resistant track for better and more durable performance Multiple gas path protection to improve welding quality Ultra thin welding gun design allows for easy welding in small spaces

Welding pipe diameter: 6.35mm to 168.0mm

Welding form: Butt joint and plug joint

Welding wall thickness: 0.5mm~3.0mm

Applicable power supply: XD-20W/XD-20Pro

Get a Quote

Essential Details

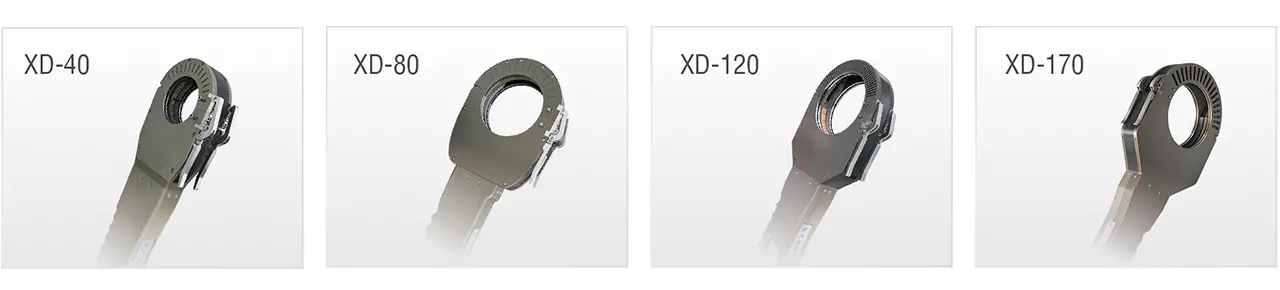

Model	XD-40	XD-80	XD-120	XD-170
Power supply	XD-20W all-position programmed power supply
Welding material	Carbon steel / stainless steel /titanium alloy, etc
pipe diameter(mm)	6.35-38.1	10-76.2	19-114.3	38.1-168
Maximum wall thickness(mm)	2.5	3	3	3
Torch rotation speed(rpm)	0.16-2.8	0.1-1.8	0.1-1.8	0.1-1.8
Weld head cooling	Water cooling
Welding shielding gas	Argon
Weight(kg)	3.5	5.0	6.5	9.5
Size(mm)	381.512048	438.5172.552	513226.548	650331.5163

Product Display

1730367393241058
