Heat Exchanger Enclosed Welding Torch

This series of orbital welding guns is suitable for industries such as heat exchangers, refrigeration, dense piping, and boiler. The design includes agearbox with water cooling system and cylinder clamping function. The welding gun can be customized according to the customer's pipe spacing, and the customization cycle is about 2 weeks before delivery for use. The parameters and performance of this series of welding guns are as follow:

U-shaped track weldig gun welding range: 9mm~25mm

T-type pullout welding gun welding range: 12.7-25mm

Welding wall thickness: 0.5mm~1.5mm

Welding materials: Stainless steel, iron

Power supply: XD-20W/20Pro

Z-series gears are standard across the entire series, with a lifespan that is twice as long as similar products

Get a Quote Download

Essential Details

U型管焊机

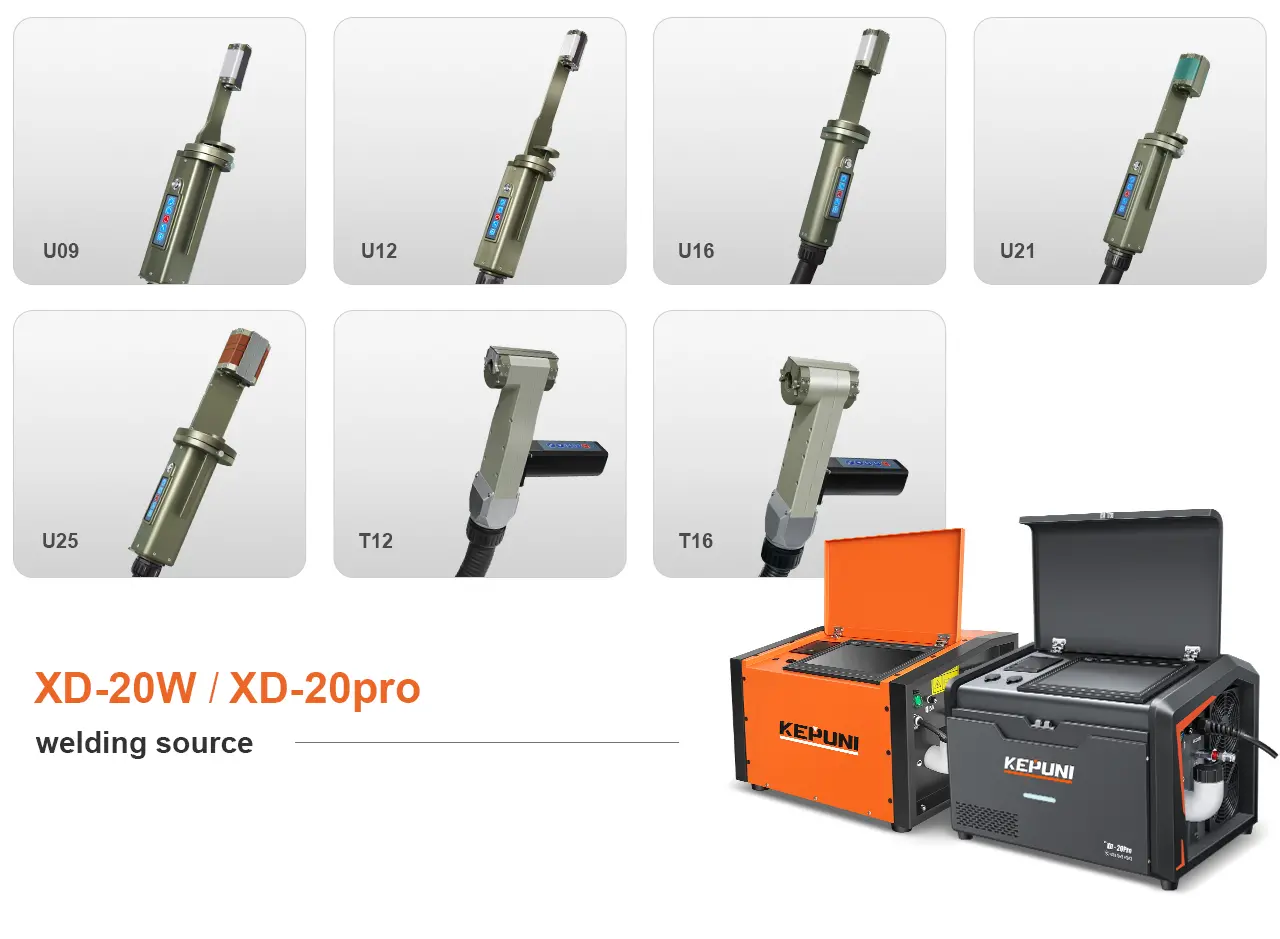

Model	U09	U12	U16	U21	U25	U-shaped drawing	T12	T16
Power supply	XD-20W/XD-20Pro
Welding material	Carbon steel / stainless steel /titanium alloy, etc
Center distance(mm)	≥25	≥32	≥35	≥42	≥52	≥46	≥32	≥35
Staight line secction (mm)	≥35	≥35	≥35	≥35	≥35	≥40	≥35	≥35
Elbow straight section(mm )	≥38	≥40	≥40	≥40	≥41	/	≥38	≥40
Welding diameter range(mm)	9.52	9-12.7	12.7-15.88	15.88-21	19-25		12.7-15.88	15.88-21
Maximum wall thickness(mm)	0.5-1.5
Weld head cooling	Water cooling
Welding shielding gas	Argon
Weight(kg)		6.5	7	7.8	8	6	6
Size(mm)		393.58095	3828095	4008095	415110126	20318073	20318073

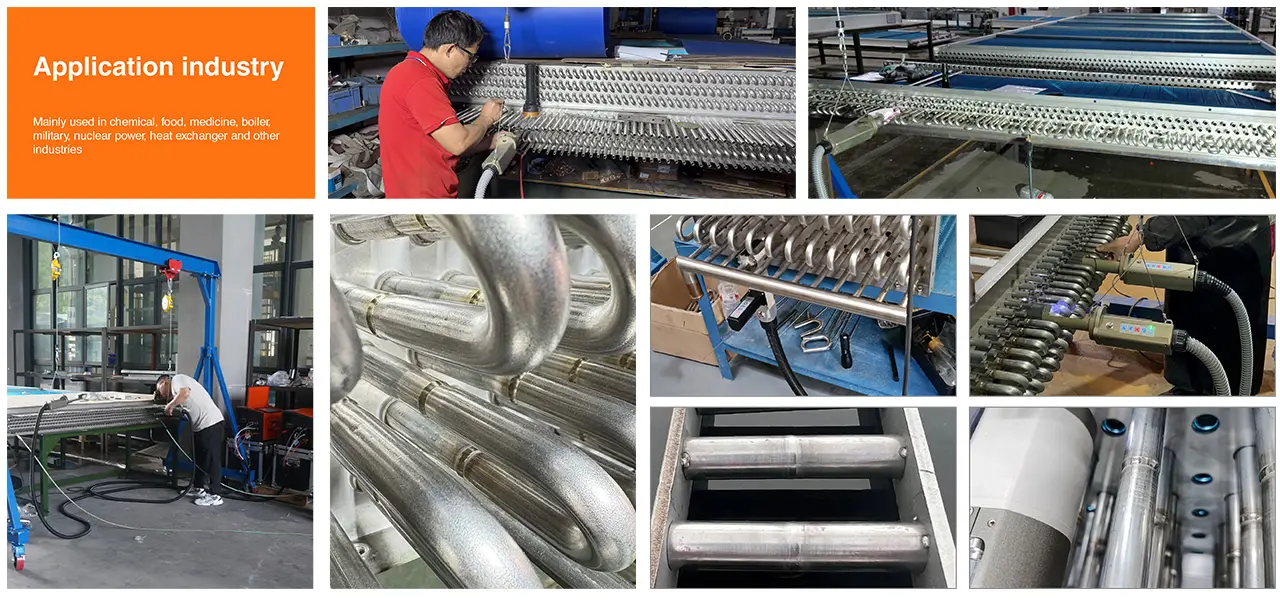

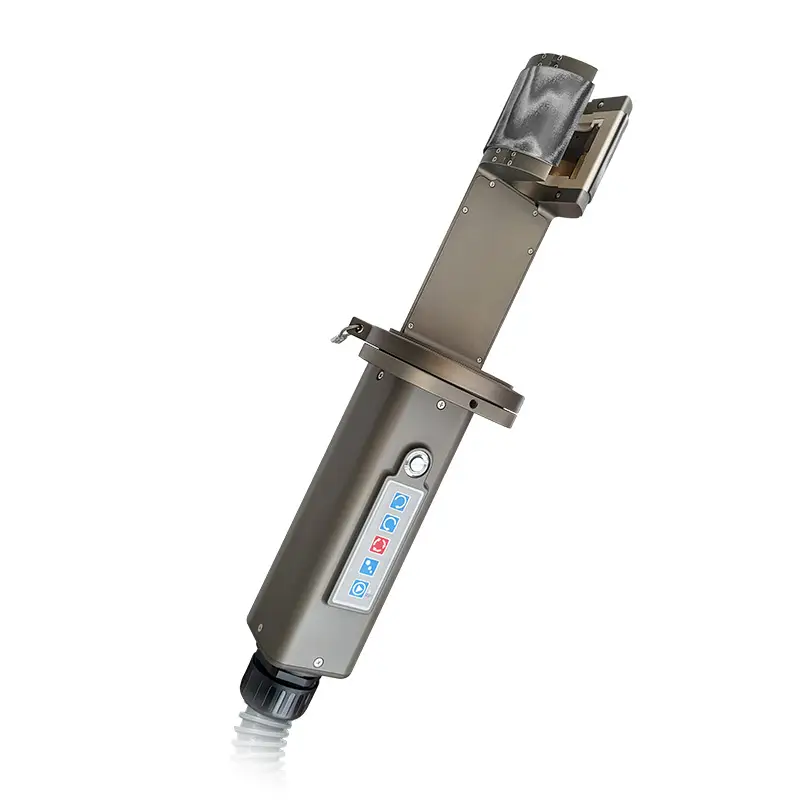

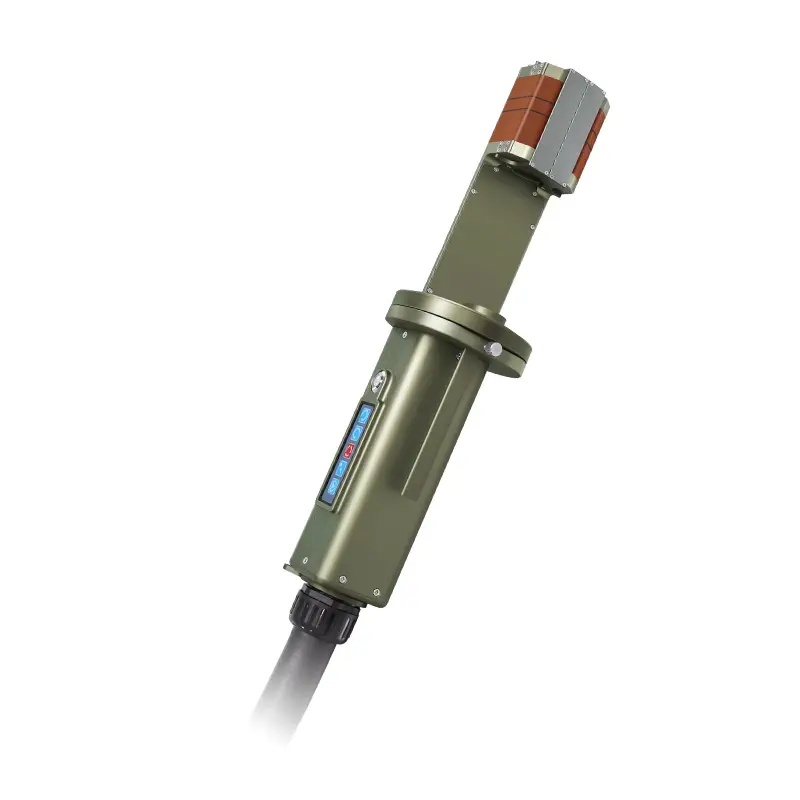

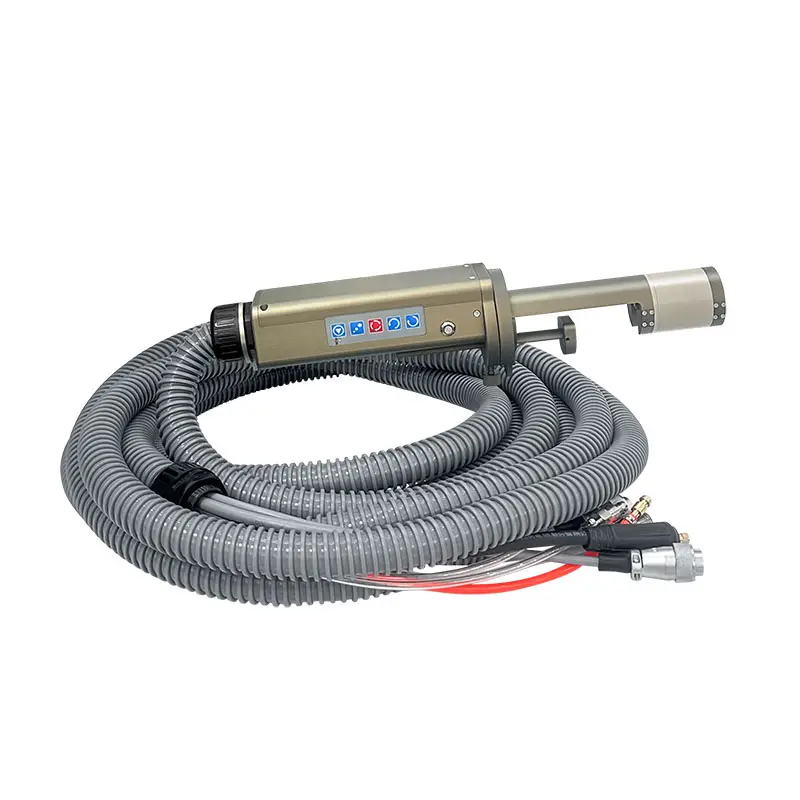

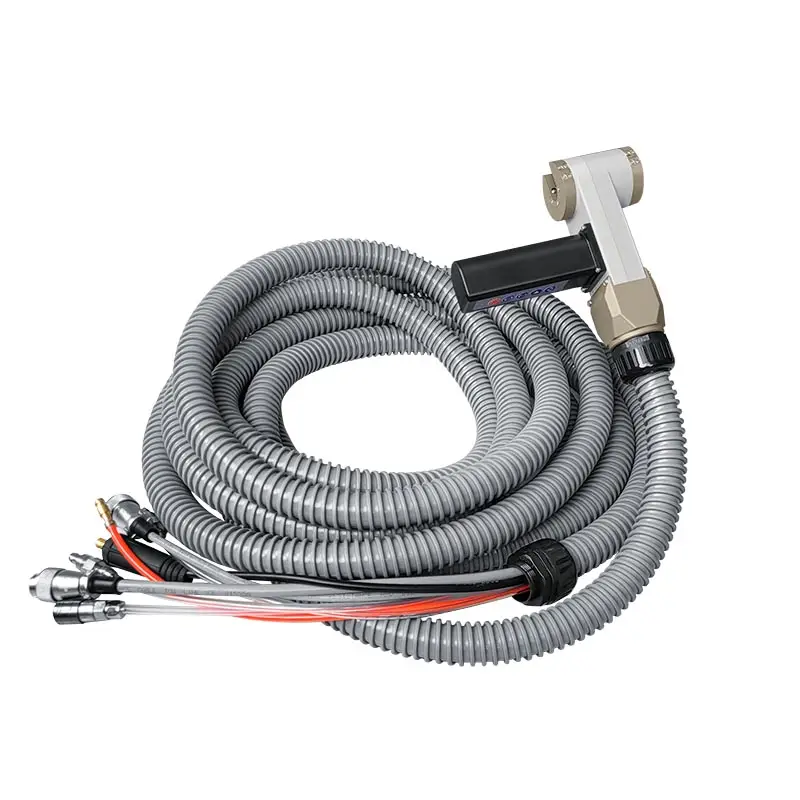

Product Display
