Tube to Tube Sheet Welding Machine
Tube To Tube Sheet Orbital Welding Machine
KEPUNI provides the most professional automatic welding equipment for thin-walled tube sheets. With years of on-site experience and integrated expert database system, the automatically generated expert parameters are more reliable, ensuring that each weld can achieve the best welding effect. Perfect interval segmentation and parameter saving functions, which can be changed, retrieved, and saved according to different welding process requirements It can achieve welding simulation function and timely discover problems that may arise when current parameters are applied to actual welding The equipment has functions such as tungsten short circuit protection, motor overload protection, current monitoring, water flow detection, nitrogen deficiency monitoring, and fault prompt.

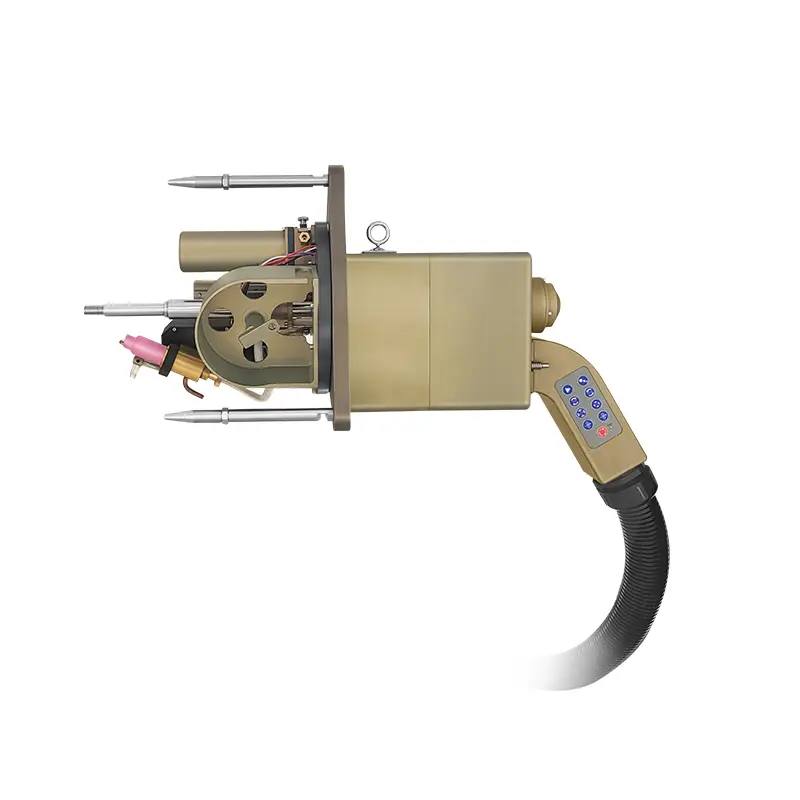

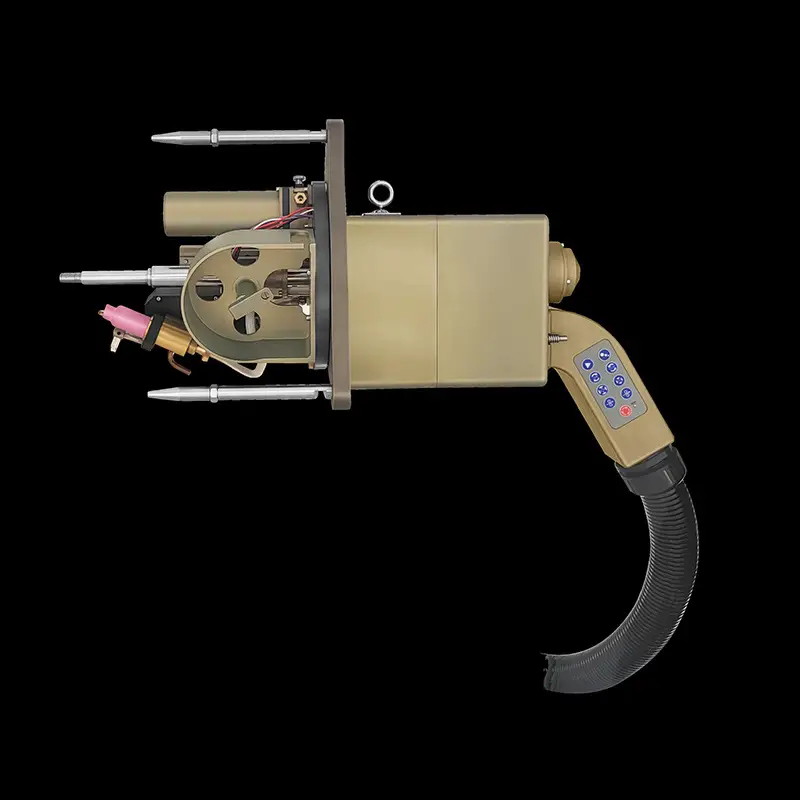

Adapted weld head: XD-35/XD-65
Welding material: Stainless steel, carbon steel, titanium, nickel .etc
Welding wall thickness: ≤ 5mm
Expert database: To make programming simpler and welding more reliable
Parameter printing: Provide parameters such as current, voltage, rotation speed, and swing speed for each welding interval to optimize the welding effect in the later stage
Related Products
Essential Details

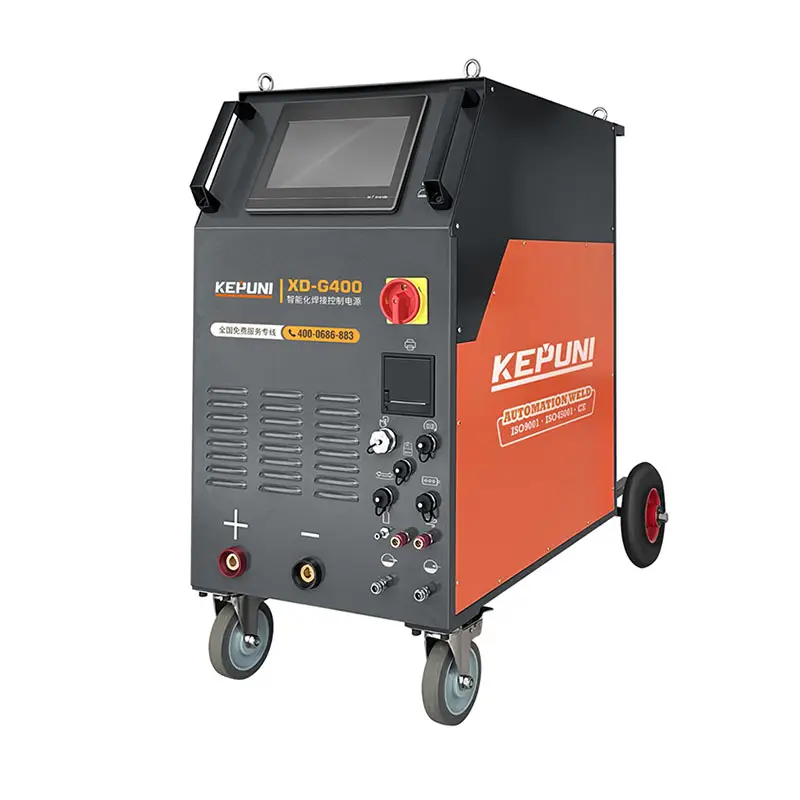

ModelXD-G400
Welding current5-400A
Rated input power18KW
Duty cycle320/60%
Floating voltage73V
Weld head coolingBuilt-in circulating water cooling
Technologyself melt/add filler wire(flat mouth pipe/fillet weld)
Memory200
Partitionable interval20
Protection gradeH/IP23
Water tank volume4L
Weight(kg)120
Dimension(mm)1150*630*940

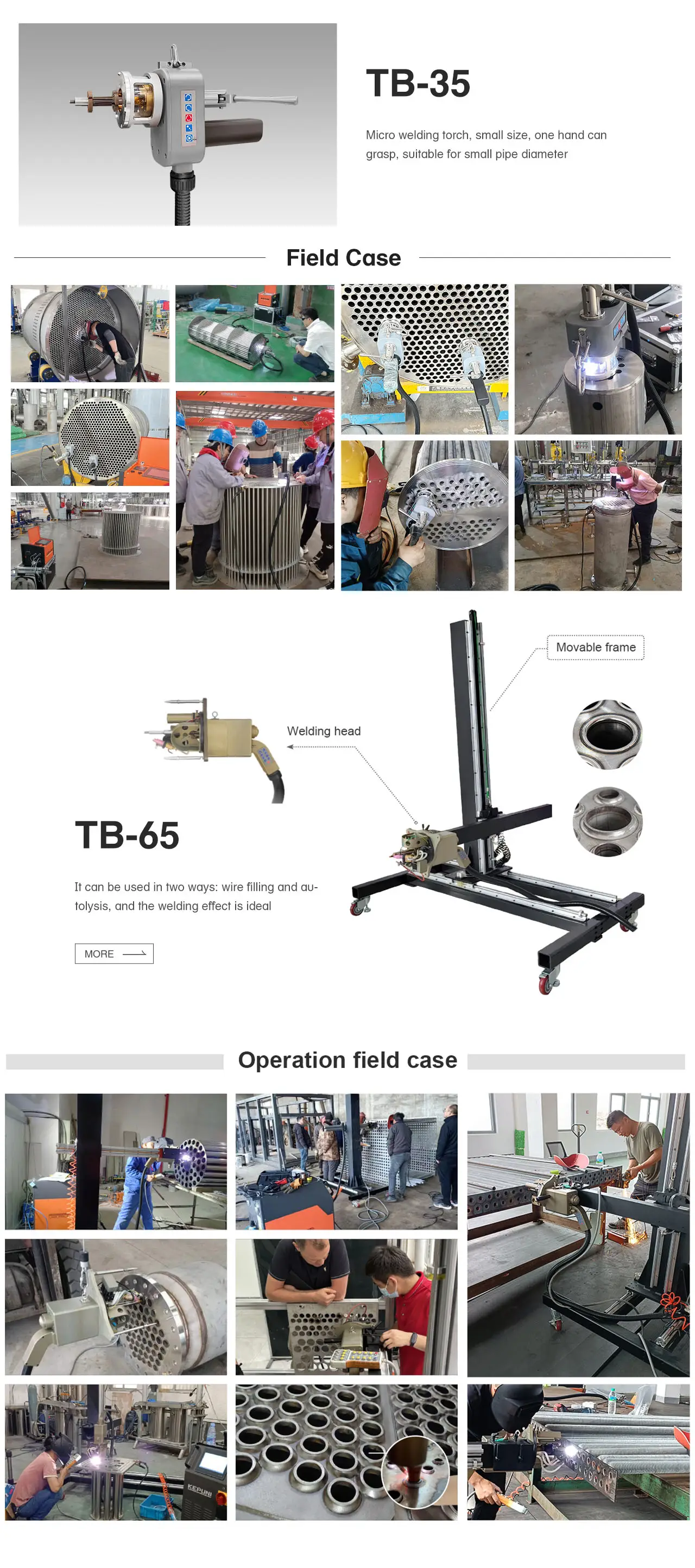

Product Display
